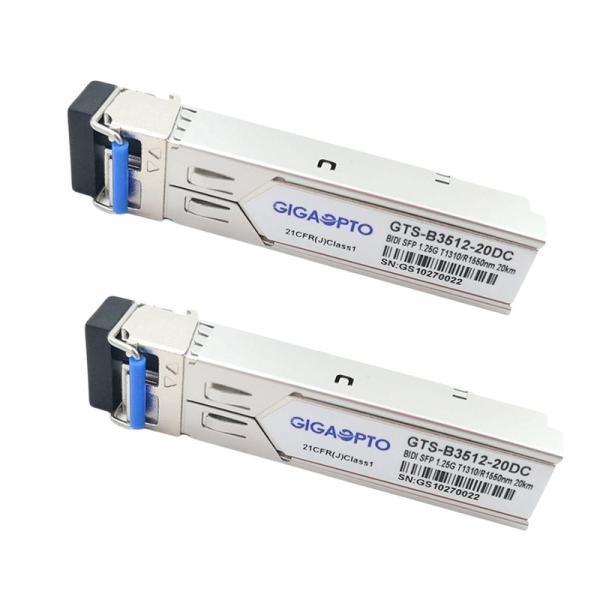

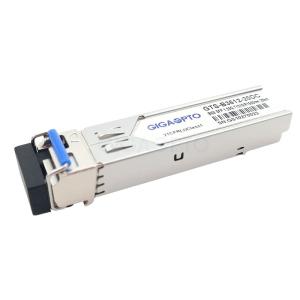

T1310nm/R1550nm Cisco GLC-BX-20U Compatible 1.25Gbps SFP Transceiver Module SMF DOM Simplex LC 20km
Description Of GLC-BX-20U Compatible Cisco SFP Transceiver
This Cisco GLC-BX-20U compatible SFP is a single fiber bidirectional Small Form-factor Pluggable SFP BIDI module for use in 1000BASE Ethernet. This bi-directional SFP module provides 1Gb/s throughput up to 20km over single-mode fiber (SMF) using 1310nm in the transmitter side and 1550nm in the receiver side. The Cisco SFP transceiver features a highly reliable FP transmitter and PIN photodetector to offer high-performance interconnection at a 1 Gbps data rate.
This 1000BASE-BX SFP transceiver is factory pre-programmed for compatibility, performs identically to original Cisco GLC-BX-20U transceivers.
Specification Of GLC-BX-20U Compatible Cisco SFP Transceiver
| Compatible Brand |
Cisco |
Compatible PN |
GLC-BX-20U |
| Form Type |
SFP-BIDI |
Data Link |
1000Mbps |
| Connector Interface |
Single LC |
Cable Length |
20km |
| DOM/DDM |
Supported |
Cable Type |
Single-mode |
| Power Budget |
14dB |
Temperature Range |
Commercial & Industrial |
| Typical Wavelength |
1310nm-TX/1550nm-RX |
Modulation Format |
NRZ |
| Interface Type |
BX |
Icc |
300mA |
| Laser Type |
FP |
PDType |
PIN |
| Optical Output Power |
-9~-3dBm |
RX Sens. |
<-20dBm |
| Extinction Ratio |
>9dB |
Saturation |
>-3dBm |
| Protocols |
INF-8074i, SFF-8472, RoHS |
Features Of GLC-BX-20U Compatible Cisco SFP Transceiver
- Hot-pluggable Cisco SFP Transceiver
- Functionally equivalent to Cisco GLC-BX-20U
- Data rate up to 1000Mbps
- 1310nm FP transmitter
- 1550nm PIN photo receiver
- Link distances up to 20km over OS2 SMF
- Single 3.3V power supply voltage
- Simplex LC optical connector
- Built-in digital diagnostics
- International Class 1 laser safety standard compliant
- RoHS compliant and lead-free
Application Of GLC-BX-20U Compatible Cisco SFP Transceiver
- Gigabit Ethernet
- Fast Ethernet
- Switch to Switch Interface
- Other optical links
FAQ
Q: Are you trading company or manufacturer?
We are original manufacturer. We can do OEM/ODM business. Our company mainly produces SFP Transceiver.
Q: What are your main products?
PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.
Q: Why choose GigaOpto?
1. Prompt delivery and remarkable services
2. Competitive selling prices
3. Rich experience in OEM & ODM co-operation
4. 100% new materials for production and 100% reliable quality
Q: How can you guarantee the quality of this GLC-BX-20U Compatible Cisco SFP Transceiver?
GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.
Q: What about the warranty of the GLC-BX-20U Compatible Cisco SFP Transceiver?
3-year warranty for new products, and lifetime technical support.
Q: Can I have a sample order? What is your MOQ of GLC-BX-20U Compatible Cisco SFP Transceiver?
Yes, a sample order is available for your testing and checking quality. Mixed samples are acceptable, our MOQ is just one piece.
Q: Could I use our own logo, label, and package on this GLC-BX-20U Compatible Cisco SFP Transceiver?
Yes, we can help you to market your own brand of 3rd party transceivers
OEM customization : Your LOGO (Labeling); Your P/N (Labeling);Your S/N (Labeling);
EEPROM information: Vendor name: customized your information; P/N: customized your information; S/N: customized your information.
