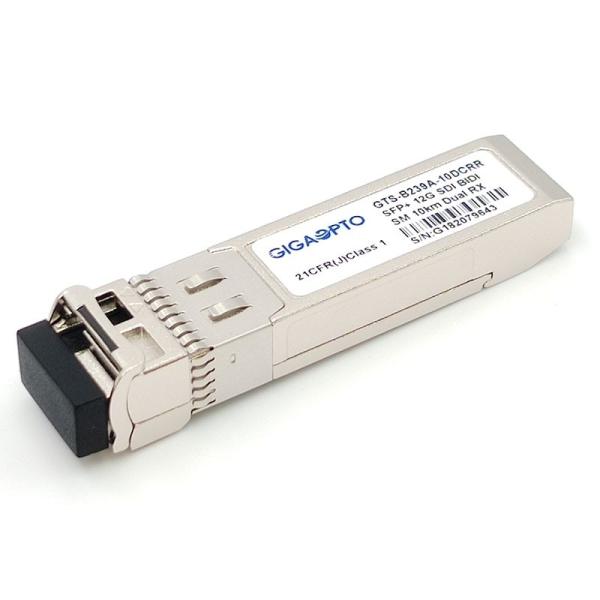

Non MSA Pinout 12G SDI SMPTE SFP 1270nm-RX1/1330nm-RX2 10km BiDi Dual Receivers Module LC DOM

Brand Name : Gigaopto

Model Number : GTS-B239A-10DCRR

Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL

Place of Origin : Shenzhen, China

MOQ : 1

Price : negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 50,000pcs/month

Delivery Time : 1-5 work days

Packaging Details : Single Package，10 or 20pcs per Tray，30 or 50 or 100pcs per box, 400 or 600pcs per carton

Product Name : 12G BiDi Dual-Receiver Module

Module Type : SFP+ 2RX in 1 fiber

Wavelength : 1270nm-RX1 / 1330nm-RX2

Connector Type : Simplex LC

Cable Distance : 10km

MSA/Non MSA : Non MSA

Keywords 1 : 1270nm/1330nm Dual Receivers Module

Keywords 2 : Dual Receivers BiDi 12G Video SFP

Contact Now

12G SDI Dual Recievers SFP BiDi One Fiber 10km Simplex LC Connector Non MSA Pinout

Functional Specification

Part Number GTS-B239A-10DCRR Data Rate 11.88Gb/s
Product Category 12G-SDI Dual-Receiver Module MSA/Non-MSA Non MSA
Package Type SFP+ BiDirectional 2Rx Temperature 0 to 70°C (32 to 158°F)
Wavelength 1270nm-Rx1 / 1330nm-Rx2 Max Fiber Length 10km
Fiber Connector Simplex LC Fiber Type SMF
Transmitter Type N/A Receiver Type PIN
Power Supply Voltage 3.3V Supply Current 260mA
Rx Sen.@ 11.88Gbps <-11dBm Rx Sen.@ 5.94Gbps <-13dBm
Rx Sen.@ 2.97Gbps <-15dBm Rx Overload >1.0dBm
DOM Support as default Warranty Time 36-month
OEM/ODM Supported Weight 0.025kg
Protocols SMPTE ST 259, SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1

Description

Gigaopto's GTS-B239A-10DCRR Bidirectional dual-receiver optical module is designed for 12G-SDI video broadcast network links reach up to 10km over Single-Mode Fiber (SMF).

It integrated 2 photodiode into one BOSA and can be deployed in one fiber receive solution with simplex LC connectors.

The receiver module is compliant with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST 292-1 (HD-SDI), and ST259 (SD-SDI).

Real time digital diagnostic monitoring functions are available via an I2C, as defaulted by SFF-8472.

Features

  • SD/HD/3G/6G/12G-SDI SFP Dual-Receiver Module

  • ST 259, ST 292-1, ST 424, ST-2081 and ST-2082 compatible

  • Metal enclosure for Lower EMI

  • 2-channel PIN receivers w/o transmitter

  • Distance up to 10km

  • Supports SDI pathological patterns for SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI

  • Simplex LC connector

  • With reclocker in the module

  • Single 3.3V power supply

  • Hot-pluggable SFP footprint

  • Operating case temperature: 0 to +70°C

  • RoHS-6 compliant and Lead-Free

Application

  • Serial Digital Fiber Transmission System for SMPTE ST 259,SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 Signals

  • UHDTV/HDTV/SDTV Service Interfaces

PIN Definition

Non MSA Pinout 12G SDI SMPTE SFP 1270nm-RX1/1330nm-RX2 10km BiDi Dual Receivers Module LC DOM
